Technical specifications
Engine:
» JohnDeere 4045 HF C04 93kW with 2200 RPM EU STAGE4
» Max. transport speed: 25 km/h
» Max. horizontal reach: 10,5 m
» Depth reach: 6,6 m
» Weight: 18 000 kg

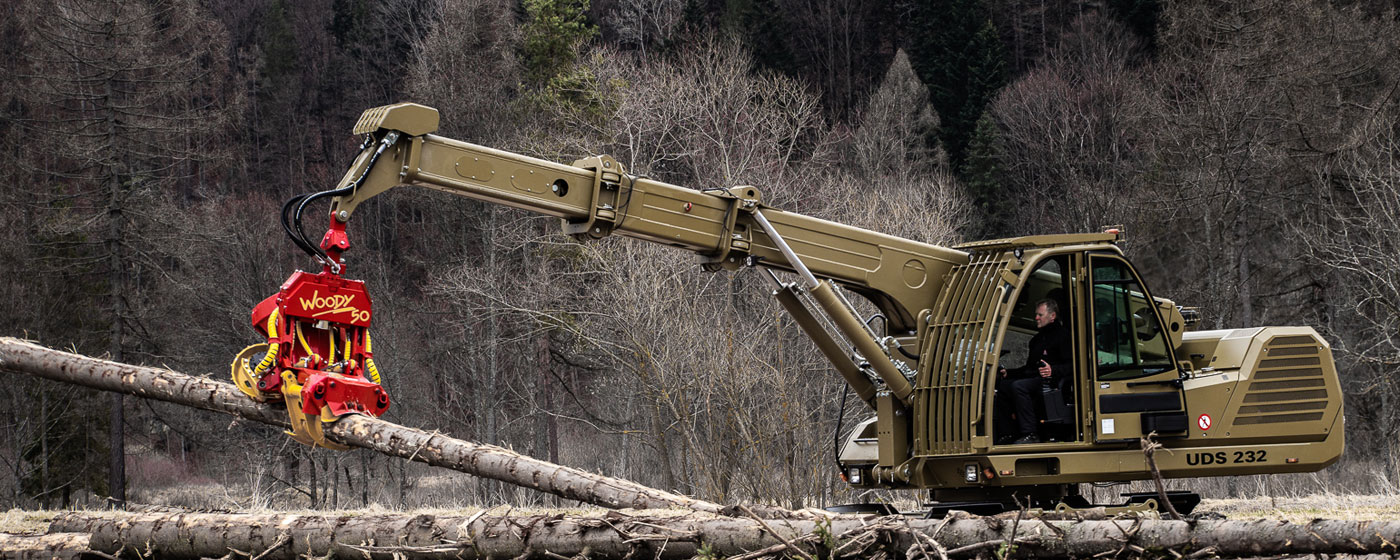

Harvester Woody 50
» Max. felling diameter 55 cm
» Max. delimbing diamete 7 - 50 cm
» Max. opening distance of the grapple 95 cm
» Delimb feed strenght 24 - 30 kN
» Movement speed 0 - 5 m/sec.
» Recommended engine power 120 HP
» Hydraulic system 300 - 350 bar; 180 l/min
» Bar saw feed rate 40 m/sec.
