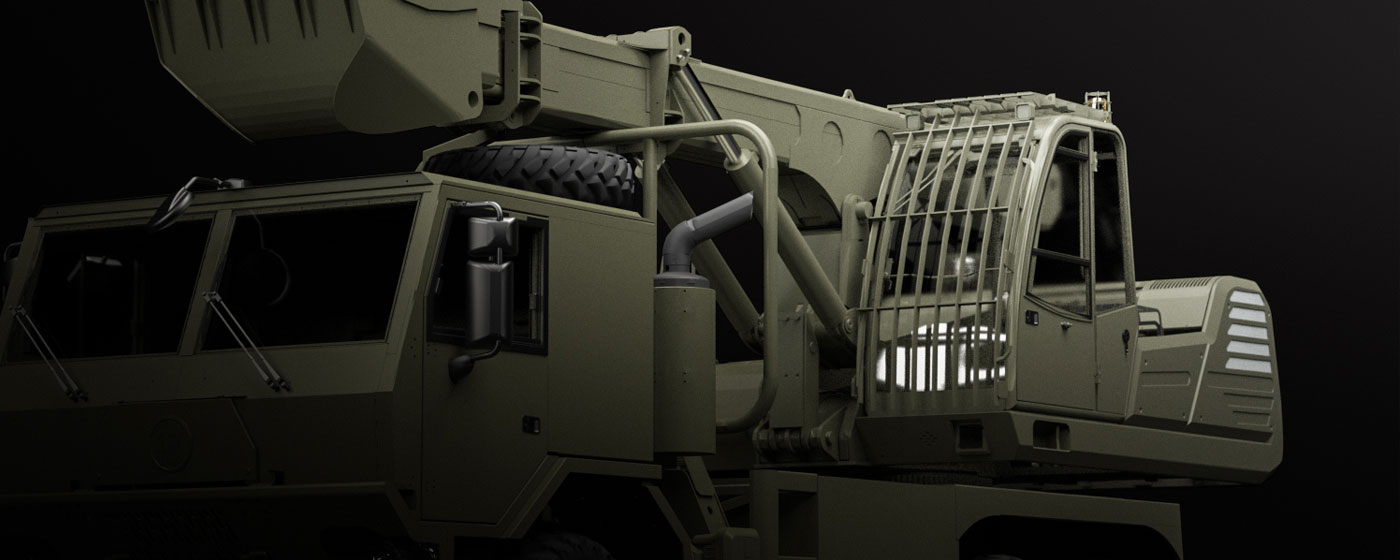

Technical specifications
Dimensions» Machine length: 9450 mm
» Machine width: 2500 mm
» Machine height: 3980 mm
» Height of chassis above ground: 365 mm
Working parameters
Output at shovelling (excavating): 115 m3.h-1
- retracted telescope: 7 000 kg
- extended telescope: 2 600 kg
» Maximum total excavating force
from thrust and retraction of the boom: 85KN
» Load capacity on the tilting point of the telescope
(without the use of extension arms)
» Superstructure revolutions: 8 ot.min-1
» Tool revolutions: 20 ot.min-1
» Maximum travel speed: 100 km.h-1
» Climbing ability on a hard surface: 50,7 %
» Overall machine weight: 24 800 kg
TATRA 815 chassis
» Three axles, with permanent drive
of both rear axles, with possibility
to engage the front axle drive and differential
closures. 6x6 drive, chassis engine output: 230 kW
Superstructure engine
» Engine: 93 - 104kW pri 2200 ot.min-1
» General description: compression ignition, four-stroke with direct
fuel injection, in-line, vertical
» Cooling: liquid-type with forced
circulation and thermo regulator
» Lubrication: engine oil circulation under pressure
» Number/ volume of cylinders: 4 / 4,5 dm3
» Hydraulic system: REXROTH
Working equipment
A telescopic boom - basic working range: + 30°, –60°, when readjusted positioning arm: 0°, - 90° from the
horizontal plane.
The range of tool tilting: 145°, 145°, both directional 360°rotation of the tool
Additional hydraulics: for hydraulically controlled attachments is mounted in the working tool
rotation circuit (as a standard for modi cation 41 and on request for
modi cation 42) and enables the use of hydraulically driven
attachments.
Operation modes of UDS 214 in modi fication 41
The machine UDS 214 modi fication 41 machine can operate in two modes:
» WORK mode – working with the superstructure
» DRIVE mode - enables control of the auxiliary drive – micro travel
(to cover short distance on site), as well as the stabilizing supports directly from the superstructure cabin, without the need to start the
undercarriage engine.
The UDS 214 modi cation 42 is without micro travel function (auxiliary drive).
Hydraulic power units
» double hydro-generator A8 VO 107
» gear hydro-generator 1PF 2G2 – 016: non-regulatory
Distributors: seven-circuit monoblock 7M8-22
Working range
A Horizontal reach mA1 with retracted telescope 6,3m
A2 with extended telescope 10,5m
A3 with 1,5 m extension arm 11,6m
A4 with 3,0 m extension arm 13,1m
A5 with 4,5 m extension arm 14,6m
B Depth reach (at telescopic arm range 0°, - 90°)
B1 with retracted telescope 2,9m
B2 with extended telescope 7m
B3 with 1,5 m extension arm 8,2m
B4 with 3,0 m extension arm 9,7m
B5 with 4,5 m extension arm 11,2m
C Depth reach (at telescopic arm range 30°, - 60°)
C1 with retracted telescope 2,1m
C2 with extended telescope 5,7m
C3 with 1,5 m extension arm 6,6m
C4 with 3,0 m extension arm 7,9m
C5 with 4,5 m extension arm 9,2m
D Dumping height
D1 with retracted telescope 3,4m
D2 with extended telescope 5,5m
D3 with 1,5 m extension arm 6,6m
D4 with 3,0 m extension arm 7,4m
D5 with 4,5 m extension arm 8,2m
E Height reach
E1 with retracted telescope 5m
E2 with extended telescope 7m
E3 with 1,5 m extension arm 8m
E4 with 3,0 m extension arm 8,7m
E5 with 4,5 m extension arm 9,5m
