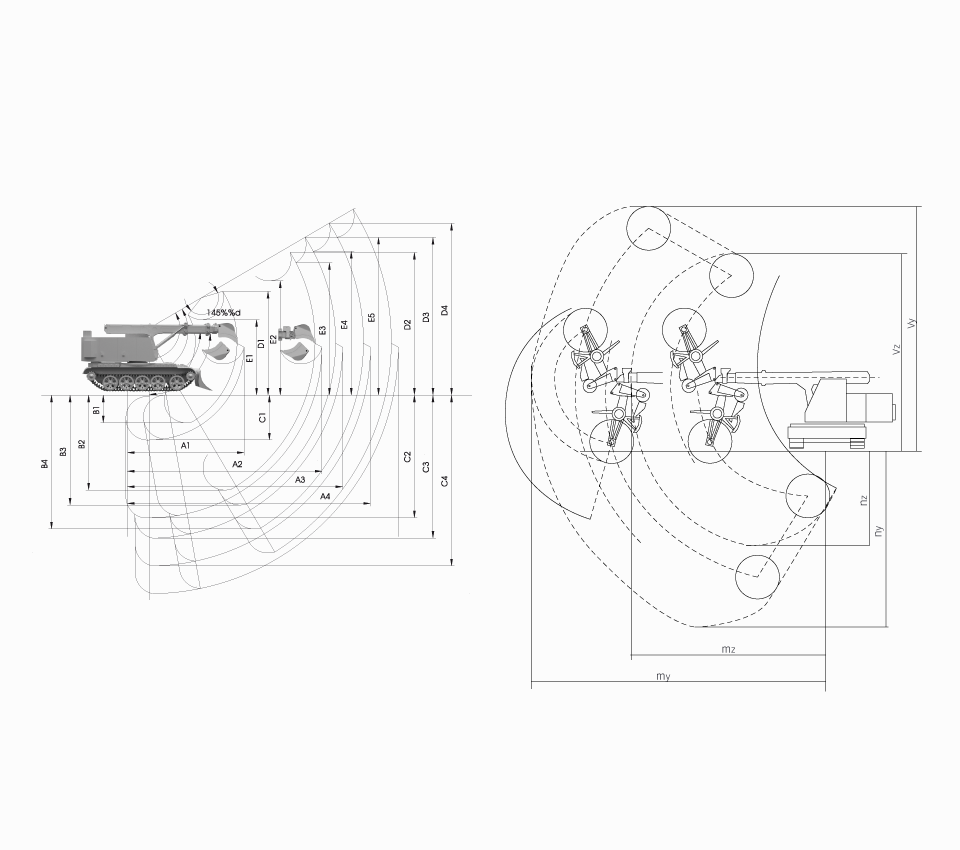

Working range
A Horizontal reach mA1 with retracted telescope 6,3m
A2 with extended telescope 10,5m
A3 with 1,5 m extension arm 11,6m
A4 with 3,0 m extension arm 13,1m
B Depth reach (at telescopic arm range 0°, - 90°)
B1 with retracted telescope 2,9m
B2 with extended telescope 7m
B3 with 1,5 m extension arm 8,2m
B4 with 3,0 m extension arm 9,7m
C Depth reach (at telescopic arm range 30°, - 60°)
C1 with retracted telescope 2,1m
C2 with extended telescope 5,7m
C3 with 1,5 m extension arm 6,6m
C4 with 3,0 m extension arm 7,9m
D Dumping height
D1 with retracted telescope 3,4m
D2 with extended telescope 5,5m
D3 with 1,5 m extension arm 6,6m
D4 with 3,0 m extension arm 7,4m
E Height reach
E1 with retracted telescope 5m
E2 with extended telescope 7m
E3 with 1,5 m extension arm 8m
E4 with 3,0 m extension arm 8,7m
Working range with demining equipment
Horizontal reachmz » with retracted telescope 8,4m
my » with extended telescope 12,5m
Vertical (depth) reach
nz » with retracted telescope 4,1m
ny » with extended telescope 7,7m
Vertical (hirise) reach
vz » with retracted telescope 8,6m
vy » with extended telescope 10,6m
Technical specifications
» Output at digging (excavating) 115 m3/hod
» Maximum total excavating force
from thrust and retraction of the boom 85 kN
» Machine weight 38.400 kg

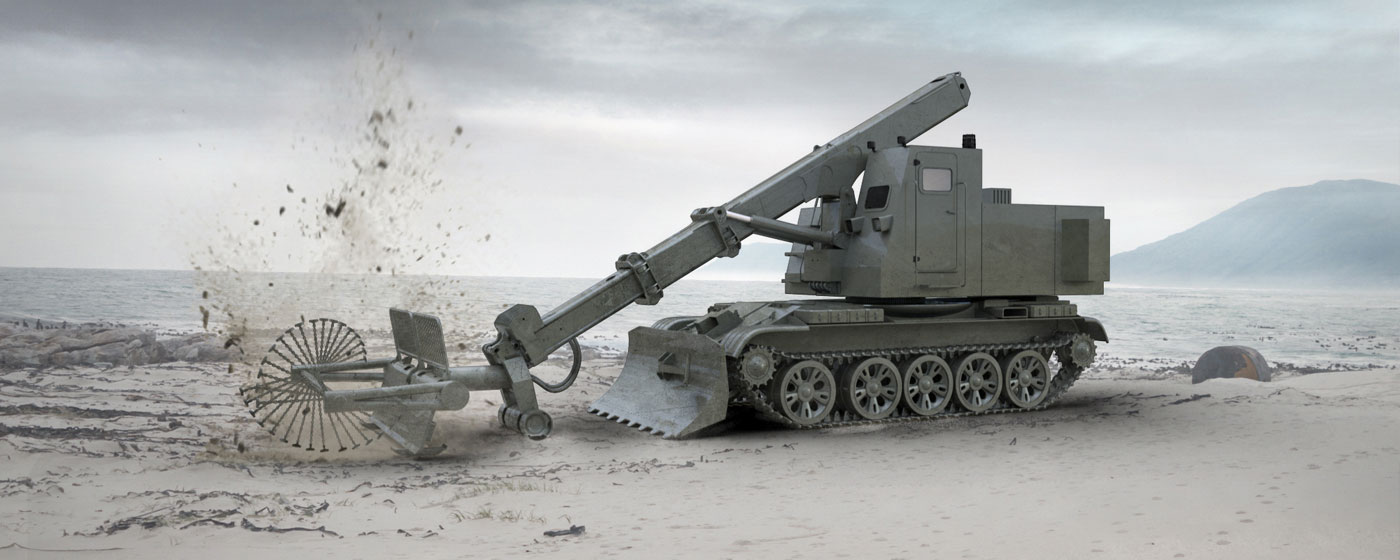

Mine clearing by boom disengagement
Max. movement velocity of demining device 250 m/hour
Max. demining performance 400 m2/hour
Intensity of hammer strokes in machine movement direction 7 mm
Mine clearing by machine travel
Max. demining velocity 8-10 km/hour
Intensity of hammer strokes in machine movement direction 280 mm
Mine clearing device
Circular diameter of activated flails1.854 mm
Max. shaft revolutions 600 rpm
Power effect of activated flails 4000 N/one hammer
Width of shot mine cleaning device 2.987 mm
